SS-J-A Smart Swarm System

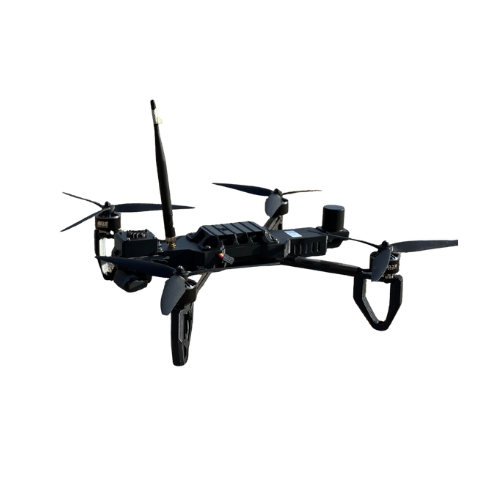

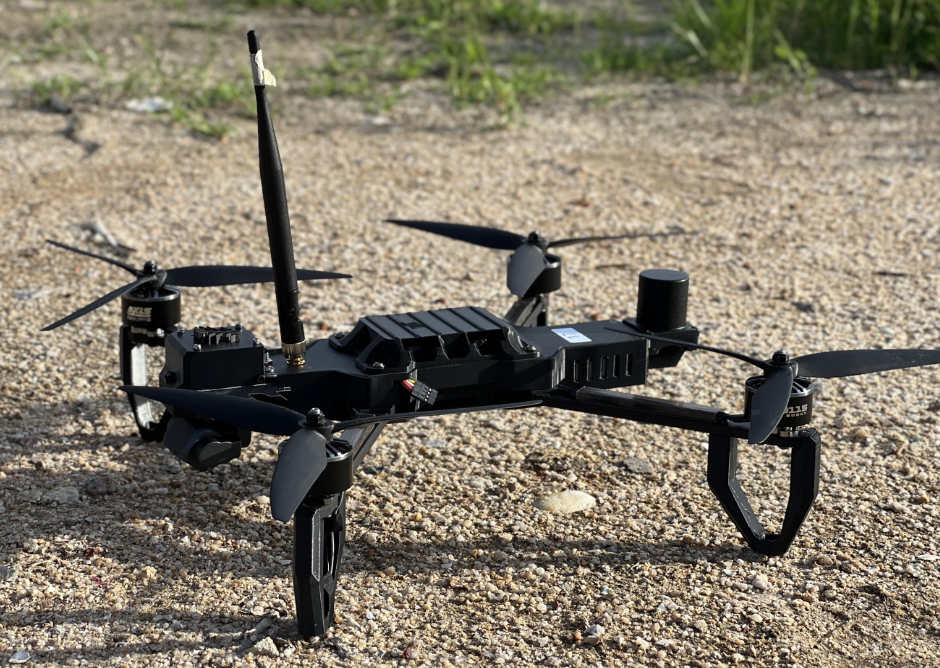

The SS-J-A Drone is engineered for precision and durability, featuring a high-precision GNSS system, dual communication capabilities, and a robust design capable of operating in extreme temperatures. With a flight time of 45 minutes and a maximum speed of 25m/s, it is designed for both speed and endurance, suitable for a variety of challenging environments.
Key Features
- 📍 Advanced Positioning System – Integrates high-precision GNSS for accurate location tracking.
- 🔗 Robust Communication – Features dual communication systems for enhanced reliability.
- ⏳ Long Endurance – Achieves up to 45 minutes of flight time on a single charge.
- 🎛️ Precision Maneuverability – Offers high-speed travel at up to 25m/s with fine control over movement.
- 🔩 High Durability – Built to operate in extreme temperatures ranging from -20°C to 60°C.
- 🔋 Efficient Power Management – Utilizes advanced energy solutions to maximize operational duration and efficiency.

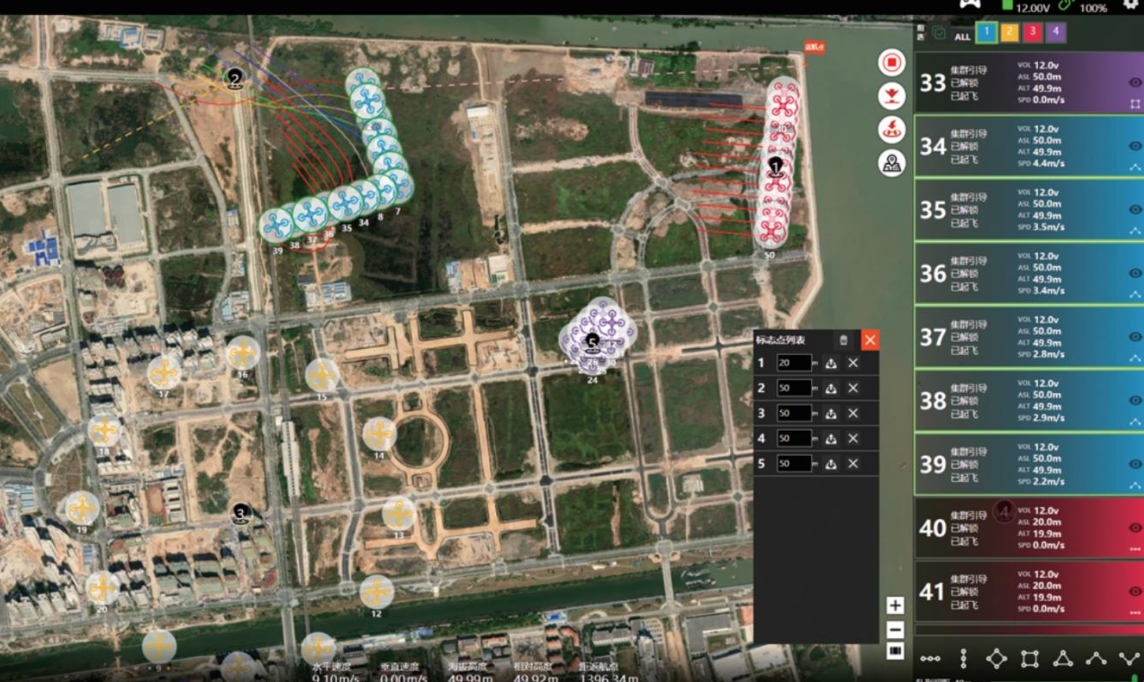

- 🗺️ Advanced Mapping and Surveillance – Equipped with tools for real-time mapping and monitoring, covering large areas effectively within 30 minutes.
- 🛠️ Multi-Tasking Capabilities – Capable of performing reconnaissance, search, and rescue missions simultaneously.
- 🧭 Intelligent Path Planning – Features dynamic and intelligent path planning for operational efficiency in diverse environments.
- 🖥️ Real-Time Data Processing – Processes and analyzes data on the fly to support rapid decision-making and precise operations.
- 🤖 AI Integration – Utilizes AI to optimize flight paths and operational strategies, enhancing task execution and adaptability.
- 🆘 Emergency Response – Designed to rapidly respond to emergency situations, ensuring timely intervention.
- 🔍 High-Resolution Imaging – Employs high-resolution imaging to provide detailed visual information over vast distances.
Product Specifications
| Specification | Details |
|---|---|
| Dimensions (Unfolded) | 350mm x 327mm x 196mm |
| Dimensions (Folded) | 110mm x 434mm x 196mm |
| Weight (With Battery) | 4.6kg |
| Weight (Without Battery) | 2.3kg |
| Frequency Range | 1360-1450MHz |
| Maximum Speed | 25m/s |
| Flight Time | 45 minutes |
| Communication Range | 6km |
| Maximum Ascent/Descent Speeds | Ascent: 10m/s, Descent: 2m/s |
| Positional Accuracy | Horizontal: ±2.0m (GPS), ±0.1m (RTK); Vertical: ±1.5m (GPS), ±0.1m (RTK) |
| Protection Rating | IP54 |
| Operational Temperature | -20°C to +55°C |
| Storage Temperature | -20°C to +60°C |
| Maximum Altitude | 5200m |
