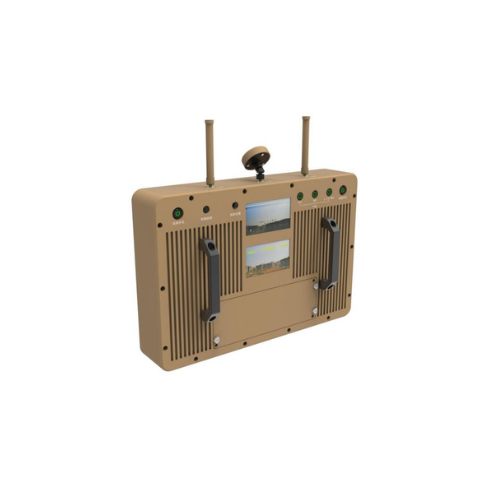

Portable UAV Jamming Interception Device NA-JP-103
The product is a high-tech equipment rigorously designed to military standards specifically for countering illegal drone threats. It is capable of effectively detecting and combating racing drones or UAVs, thereby ensuring aerial safety. Its primary functions include real-time detection of racing drones, receiving and restoring transmitted images, and possessing significant interference capabilities to effectively counter unauthorized drones or racing drones, securing critical areas. By disrupting the data, image transmission, and navigation links, it cuts off communication and navigation signals between drones and controllers, forcing drones to land or expel them from the area.
Product Overview
This device is a high-tech countermeasure equipment designed strictly to military standards for addressing illegal drone threats. It effectively detects and combats racing drones or UAVs, ensuring aerial safety. Key functionalities include real-time detection of racing drones, capturing and restoring the video transmission images from these drones. The device also has substantial interference capabilities to effectively neutralize illegal drones or racing drones, ensuring the security of critical areas by disrupting the data links, video transmission links, or navigation links of drones, cutting off communication and navigation signals between the drone and its controller, thus forcing the drone to land automatically or expelling it from the protected airspace.
Product Features
- 📡 Racing Drone Detection: Target-specific recognition of racing drone transmission signals enhances detection efficiency.
- 🎯 Racing Drone Direction Finding: Detects and aids in pinpointing the direction of interference for racing drone signals.
- 📦 Comprehensive Interference: Effectively covers the latest mainstream DJI drones (including O3+ and O4 image transmissions), road-pass drones, racing drones, and DIY assembled drones.
- 🖼️ Image Analysis: Capable of reverse commandeering the image transmission of racing drones to assess intrusion status in real-time.
- 🔄 Non-gun Design: Compact size, simple operation, and minimalist design for easy and discrete deployment.
- 🔋 Detachable Battery: Quick battery replacement, strong endurance, and extended operational times.
Performance Specifications
| Index | Technical Specifications |
|---|---|
| Detection Mode | Passive detection |
| Detection Bands | Low frequency: 1000MHz-1500MHz High frequency: 5100MHz-6000MHz |
| Detection Distance | 1km~3km (based on the signal strength of the racing drone) |
| Detection Angle | 360° omnidirectional |
| Directional Accuracy | ≤30° |
| Device Control Distance | ≥1500m (Mavic 2 with a ratio of 10:1) ≥1000m (Mavic 3 with a ratio of 2.5:1) ≥1000m (digital/analog transmission racing drone) |
| Device Control Bands | 860 MHz – 930 MHz, 1080MHz – 1360MHz, 1550 MHz – 1620 MHz, 2400 MHz – 2500MHz, 5700 MHz – 5850MHz, 5100MHz-6000MHz (Bands are expandable and customizable) |
| Interference Power | Single channel ≤20W |
| Interference Angle | Horizontal 60°, Vertical ±30° |
| Interference Response Time | ≤5 seconds |
| Operating Temperature | -20℃ to 55℃ (customizable to -40℃ to 70℃) |
| Waterproof Rating | IP54 |
| Power Supply | Built-in lithium battery, DC28V |
| Device Weight | ≤6KG |
| Device Dimensions | 428mm*288mm*118mm (excluding antenna connector) |
