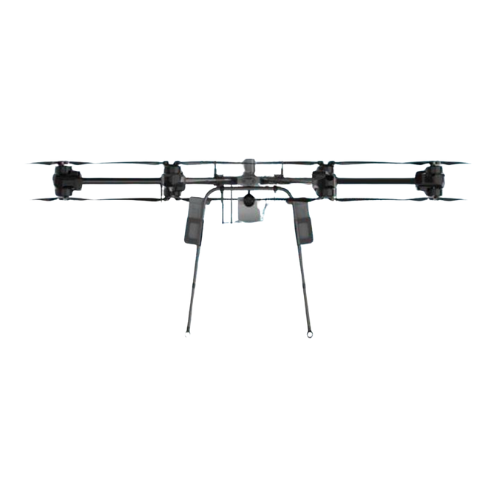

FHD-200KG
The FHD-200KG Drone is engineered for extreme performance with a maximum payload of 200kg and advanced stability features. It offers exceptional endurance with flight times exceeding 80 minutes and operates effectively in diverse environments, from sub-zero temperatures to high-altitude terrains. Equipped with sophisticated navigation systems, this drone is perfect for high-capacity, precision tasks in demanding conditions.
Key Features
- 🚀 High-Performance Motors – Equipped with powerful motors capable of carrying payloads up to 200kg.
- 📡 Advanced Stability Control – Ensures stable flight with sophisticated control systems, even in challenging conditions.
- 🔋 Long-Endurance Flight – Achieves a flight time of over 80 minutes when unloaded, ideal for extended missions.
- 🎯 Precision Navigation – Features top-tier navigation systems including GPS, GLONASS, and RTK for pinpoint accuracy.
- 🛠️ Robust Build – Constructed to operate in extreme conditions from -40°C to 70°C and at altitudes exceeding 3000 meters.
- ⚡ High-Speed Capabilities – Reaches up to 20m/s in sports mode, with quick ascent and descent rates for agile maneuvers.
- 🌐 Wide Operational Range – Effectively operates in humid conditions up to 90% and altitudes over 1000 meters.
Product Specifications
| Specification | Details |
|---|---|
| Motor Axis Symmetry Distance | 2400mm |
| Dimensions (Unfolded) | 4100mm x 4100mm x 120mm |
| Dimensions (Folded) | 2400mm x 2400mm x 120mm |
| Propeller Specifications | Diameter x Pitch: 54 x 20 inches |
| Max Ascent Speed | 5m/s |
| Max Descent Speed | 2m/s |
| Horizontal Flight Speed | Positioning Mode: 5m/s, Sports Mode: 8m/s, Attitude Mode: 20m/s |
| Max Tilt Angle | 30° |
| Max Rotational Speed | 120°/s |
| Features | Real-time observation, Automatic flight, Map casing, Flight casing, Real-time backend data monitoring |
| Load Capacity | 200kg |
| Unladen Endurance Time | Up to 80 minutes |
| Max Wind Resistance | Level 8 |
| Charging Time | 30 minutes |
| Operating Temperature Range | -40°C to +70°C |
| Flight Altitude | 3000 meters or higher |
| Flight Humidity | Less than 90% |
| Flight Height | 1000 meters or higher |
| Satellite Positioning Module | GPS/GLONASS or RTK directional positioning |
